SSX Batteries
SSX Batteries

Available Models:

35 Ampere-hour
5" x 7-3/4" x 6-1/4" (LxWxH)
127mm x 197mm x 159mm (LxWxH)
22 pounds 6 ounces (10.15 kg)

55 Ampere-hour
5-1/4" x 8-7/8" x 8-1/4" (LxWxH)
133mm x 225mm x 210mm (LxWxH)
36 pounds 12 ounces (16.67 kg)

75 Ampere-hour
6-1/2" x 10-1/4" x 8-1/4" (LxWxH)
165mm x 260mm x 210mm (LxWxH)
47 pounds 12 ounces (21.66 kg)

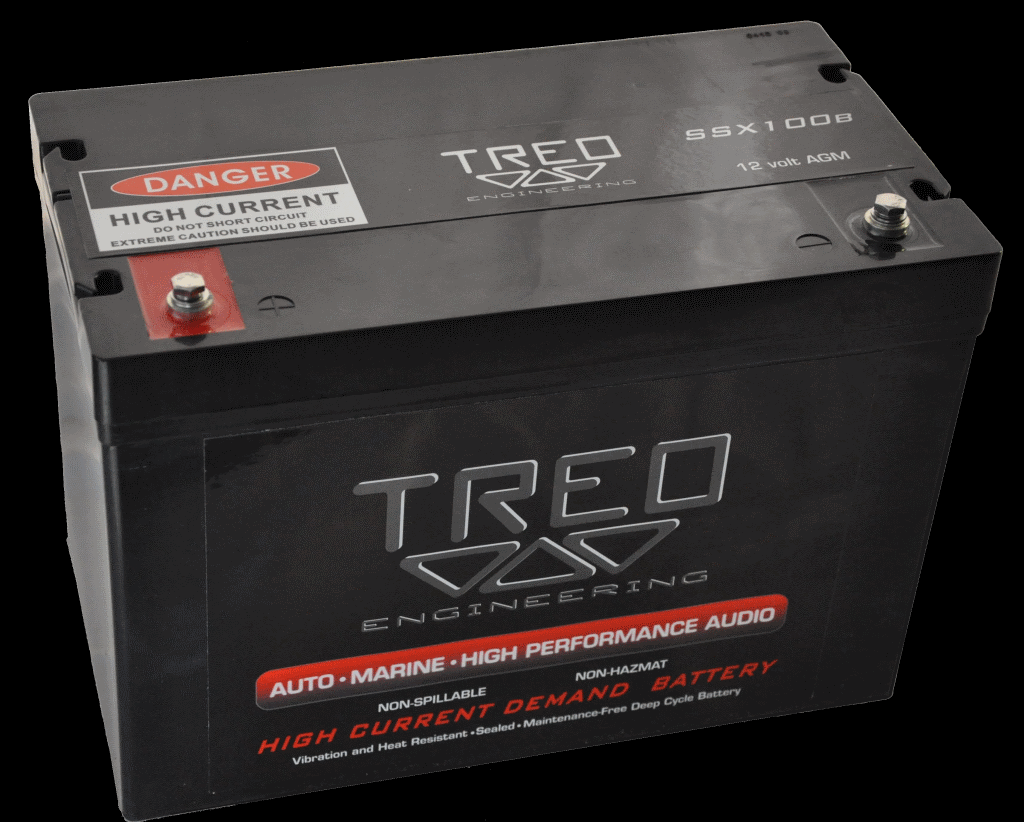

100 Ampere-hour
6-1/2" x 12" x 8-1/4" (LxWxH)
165mm x 305mm x 210mm (LxWxH)
51 pounds 8 ounces (23.36 kg)

Spacer 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

TREO Engineering has a reputation for creating subwoofers and amplifiers that make ordinary car batteries beg for mercy. Years of development and torture-testing have culminated in a solution that will serve audiophiles and bass-heads alike.

All TREO SSX Batteries use absorbant glass mat (AGM) technology for decreased internal resistance, increased power per cubic inch, and greater installation flexibility. These batteries can be safely mounted with the posts facing up or to the side with no cumbersome battery box and no ventilation required.* AGM technology also means these batteries can charge faster and can deliver larger peak current compared to conventional lead-acid batteries.

Four different models are available from the compact SSX35b all the way up to the gigantic SSX100b. These batteries are can be used in any installation no matter how limited the space or how large the current demands. The integrated handle and convenient internally threaded top posts make installation a snap in any application. TREO SSX Batteries can be linked in parallel with like model batteries via copper or aluminum buss bars.

High efficiency design coupled with intelligent audio filters enable these amps to draw the absolute minimum current necessary to deliver absolute aural satisfaction in today's more compact and fuel efficient vehicles. These amplifiers can even be used in motorcycles and all-terrain vehicles.

*Secure mounting of the batteries is still required for fire safety.


  • Absorbant Glass Mat (AGM) Technology
  • Maintenance-free design
  • Non-spillable design allows for mounting almost anywhere
  • Four sizes suitable for the most challenging applications
  • Ultra low 7 milliohms internal resistance
  • Superior resistance to heat and vibration
  • One year dealer installed warranty
